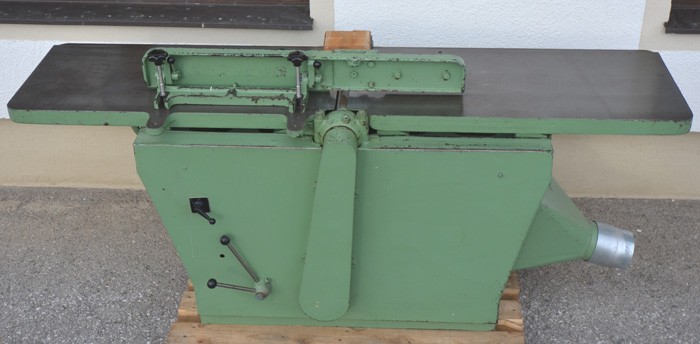

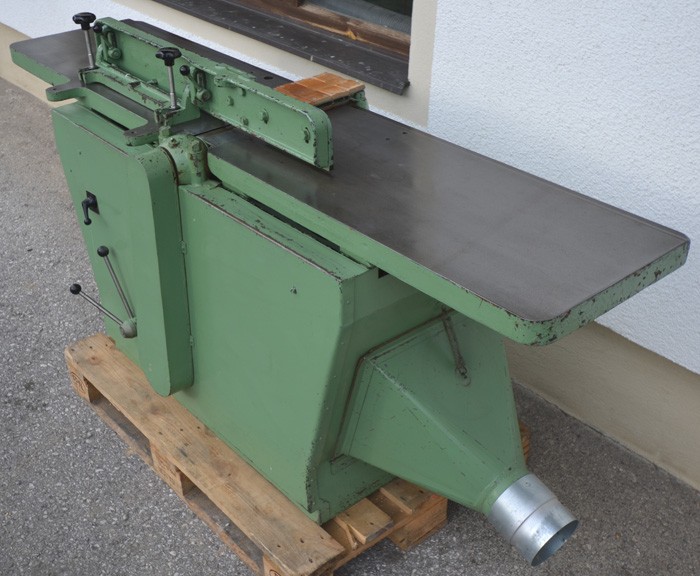

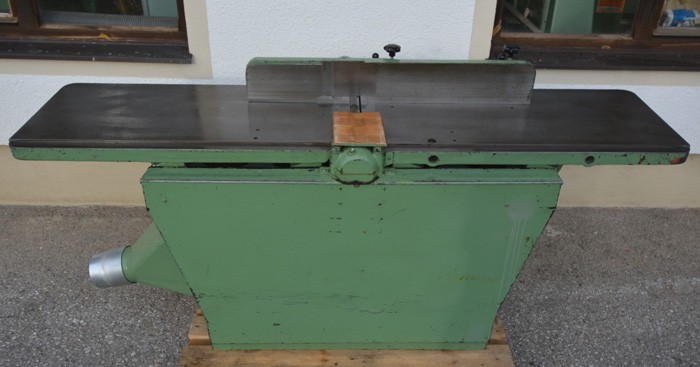

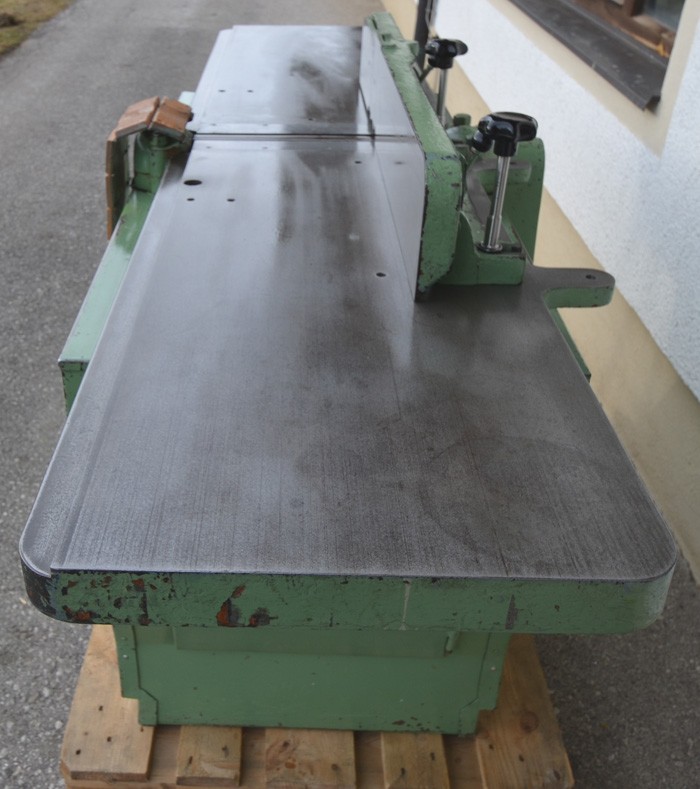

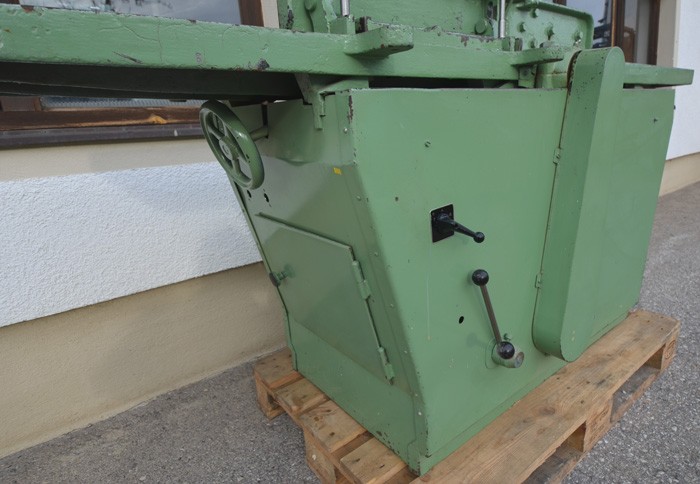

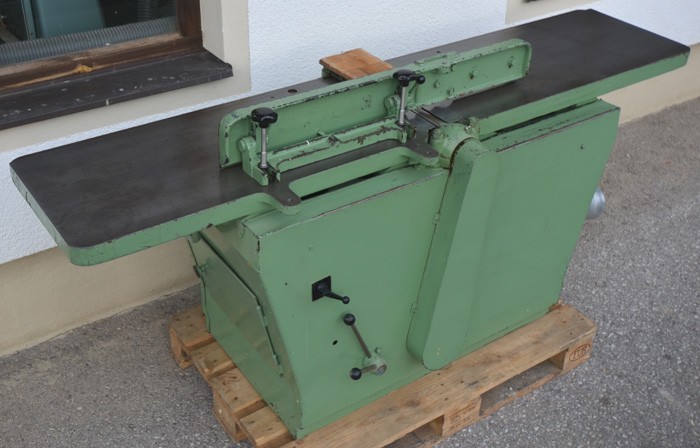

Abrichthobelmaschine Model B-2238
Manufacturer: ZUCKERMANN Abrichthobelmaschine, Hobelbreite 430 mm, Tischlänge 2070 mm Machine no.: B-2238
| Technical data and configuration | ||
|---|---|---|
| Hobelbreite | 430 | mm |
| Max. Falztiefe | 20 | mm |
| Spantiefeneinstellung | 0-20 | mm |

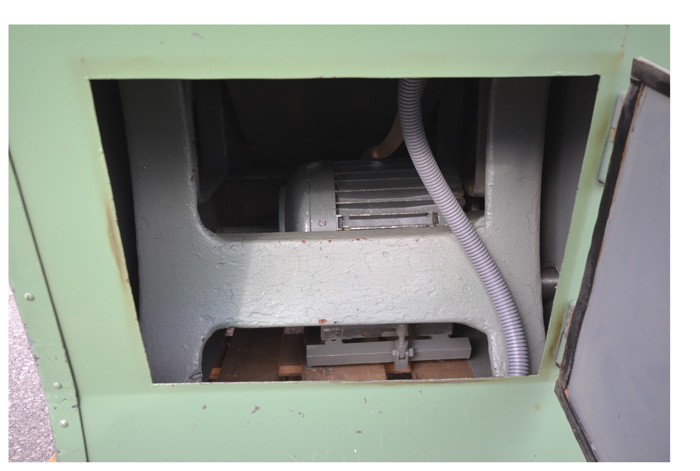

| Motorleistung Antrieb | 3,0 | kW |
| Messerwellendrehzahl | 5000 | U/min |
| Sicherheitsmesserwelle | 4 | Messer |
| Abricht Längsanschlag schwenkbar | 0-45° | |
| Abricht Längenanschlag LxB, 1000x150 mm | ||

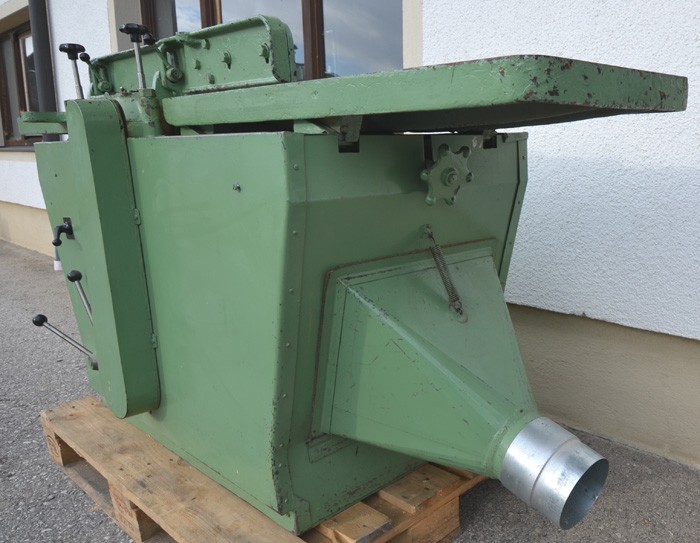

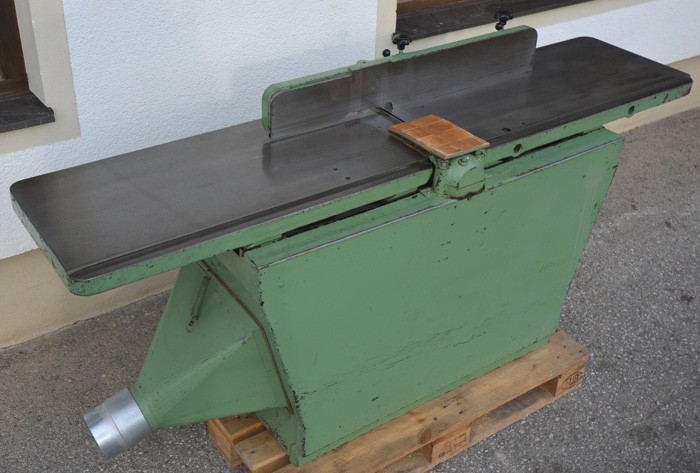

| Absaugstutzen Ø | 140 | mm |
| Gesamte Tischlänge | 2070 | mm |
| Aufgabetischlänge | 1010 | mm |
| Abnahmetischlänge | 1020 | mm |
| Manuelle Aufgabetischverstellung | ||
| Dimensions and weights | ||
|---|---|---|
| Platzbedarf | ||
| L x B x H | 2070 x 680 x 970 | mm |
| Gewicht ca. | 650 | kg |
